WCA1242 - 12" Wide 42" High, Angled End Wall Cabinet - White Shaker

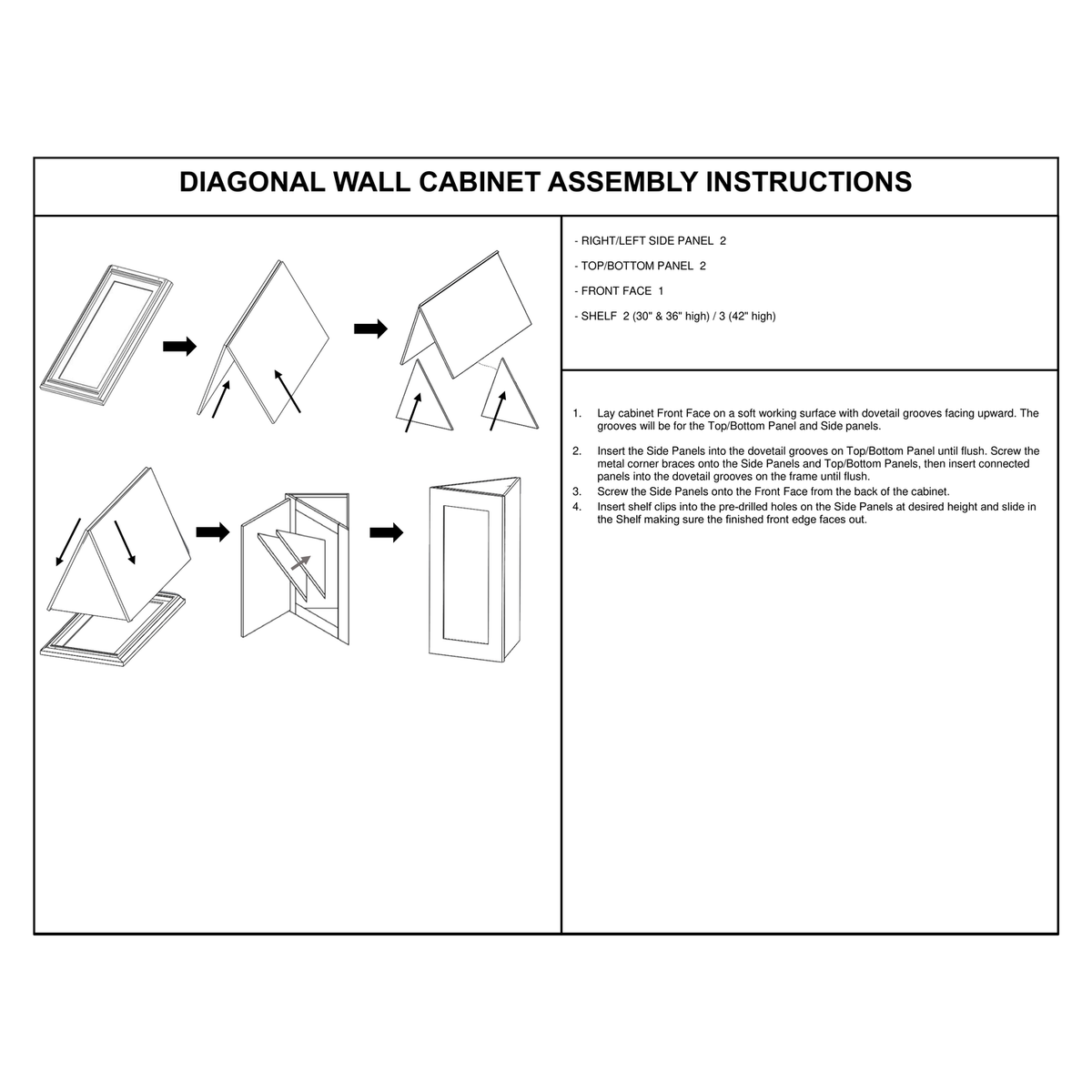

Here's the short version of the Faircrest instructions. The panels slide together on dovetail grooves, lock square with metal corner braces, and screw to the front face from behind. Most people finish in about 15–30 minutes with a screwdriver or drill and a rubber mallet. The full illustrated diagram is included in the product images above.

1. Lay the front face on a soft surface with the dovetail grooves facing up — these grooves receive the top, bottom and side panels.
2. Slide the two side panels into the dovetail grooves on the triangular top and bottom panels until flush, then screw the metal corner braces onto the side panels and top/bottom panels to hold them square.
3. Lower that joined assembly into the dovetail grooves on the front face until flush.
4. From the back of the cabinet, screw the side panels to the front face.
5. Push the shelf clips into the pre-drilled holes on the side panels at your preferred height and slide in the three shelves, finished front edge facing out.

Optional — wood glue for a sturdier finish: A small amount of wood glue in the dovetail joints gives a stronger, more permanent bond. It’s completely optional — many of our regular clients have their own preferred way of building these, and there’s no right or wrong method. Build it the way that works best for you.

All measurements are nominal. Allow ±1/8" tolerance. Consult your designer or installer for exact clearances when planning around soffits, crown molding, and adjacent cabinets.

• Box: ½" solid plywood — no particle board. Holds screws well for secure wall mounting.
• Face Frame: Solid wood, not MDF.
• Door: Single full-overlay shaker door (HDF with solid wood shaker profile) on the 45° angled face.
• Hinge: European-style soft-close concealed hinges, 6-way adjustable.
• Shelves: 3 ¾" adjustable shelves.
• Orientation: Reversible — finishes either the left or right end of a run.
• Interior: Color-matched box and shelves. Door bumpers included.

RTA (Ready to Assemble) is the best value and ships flat-packed, reducing freight cost and damage risk. RTA orders are processed in up to 14 business days before they are ready to ship or collect — though most are ready within 3–8 business days, if not sooner.

Factory Assembled units arrive pre-built and ready to hang. Assembled cabinets are bulkier to ship, so freight can be higher. Factory assembled orders are processed in up to 21 business days — typically 10–15 business days on average. Contact us — we can often reduce freight costs, especially on larger orders.

Can the WCA1242 be used on the left or right?
Yes. The WCA1242 is reversible and can finish either the left (L) or right (R) end of a run of wall cabinets. Door bumpers are included.

How many shelves does the WCA1242 have?
The WCA1242 has three adjustable shelves. In this angled end line, 30-inch and 36-inch high cabinets have two shelves; the 42-inch high cabinet has three.

How do I assemble the WCA1242?
Lay the front face down with the grooves up, join the side panels to the top and bottom panels and lock them with metal corner braces, slide that assembly into the grooves on the front face, screw the side panels to the front face from the back, then fit the shelf clips and shelves. Full written steps and the assembly diagram are on this page.

Is there a glass door option for the WCA1242?
No — there are no corresponding glass doors for this cabinet.

Is the WCA1242 solid wood or particle board?
The WCA1242 box is half-inch solid plywood and the face frame is solid maple/birch — no particle board. The door is HDF with a solid wood shaker profile, the industry standard for painted shaker doors.

What is the return policy?
Returns are accepted within 30 days of delivery on unassembled cabinets in original packaging. Unwanted returns are subject to return shipping and a 25% restocking fee. Damaged or defective items are handled on a priority basis.

• RTA orders are typically processed within 3–8 business days (up to 14 business days).
• Factory assembled orders are typically processed in 10–15 business days (up to 21 business days).
• RTA cabinets ship in flat-pack cartons — significantly lower freight risk than assembled units.
• Shipping transit time after processing varies depending on distance from our warehouse locations in Ohio and Florida.
• Warehouse collection is always free. Collections are by appointment only, Monday–Friday, 8:00 AM–3:30 PM, excluding public holidays. Contact us to book a pickup time.
• Inspect your delivery for damage before signing. Note any damage on the delivery receipt and contact us immediately.
