• Standard Double Door Wall Cabinet assembly instructions diagram – how to assemble a Faircrest RTA standard double door wall cabinet (W2430 to W4242, and 24-inch-deep W243024 to W364224): the front face, side panels, top and bottom panels and back panel slide together on grooves and lock square with metal corner braces in the top four corners, then the adjustable shelves sit on shelf clips.
1 2

Faircrest Cabinets

W243624 - 24" Wide 36" High 24" Deep, Double Door Double Depth Wall Cabinet - White Shaker

W243624 - 24" Wide 36" High 24" Deep, Double Door Double Depth Wall Cabinet - White Shaker

$334.77 USD
$586.80 USD $334.77 USD
Save Now Sold out
Shipping calculated at checkout.
Options
Solid Plywood — No Particle Board
Double Depth — 24"
Order Processing: Up to 14 Business Days
Trade Pricing Available

The W243624 is a 24"-wide × 36"-high double-depth double-door wall cabinet — built 24" deep (twice the standard 12" wall depth) for serious extra storage, commonly used above a refrigerator or as a shallow pantry upper. Solid plywood box, soft-close everything. No particle board. Available ready-to-assemble (RTA) or factory pre-built.

Two full-depth adjustable shelves, behind two full-overlay shaker doors. At $334.77 RTA vs. the $586.80 MSRP — about 43% off — it's trade-quality construction at a price that keeps your remodel on budget.

💡 Double Door — Double Depth (24"). The W243624 has two full-overlay shaker doors over a 24"-deep interior — twice as deep as a standard wall cabinet — with two full-depth adjustable shelves. Door bumpers included.
✨ Optional Glass Doors. Available with decorative glass doors in place of the solid shaker doors — ordered separately:

W243624 Dimensions

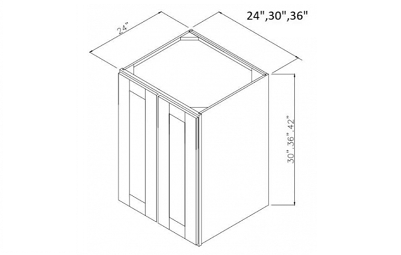

W243624 double-door double-depth wall cabinet — 24" wide × 24" deep × 36" high 2 shelves · 2 doors · 24" deep 24" 36"
Width
24"
Depth
24"
Height
36"

Construction Specs — White Shaker W243624

Box Construction½" Solid Plywood
Face FrameSolid Wood
Wood SpeciesSolid Maple / Birch
Door StyleShaker / HDF (2 doors)
Shelves2× ¾" Adjustable
DoorsTwo Full-Overlay
HingeSoft-Close 6-Way Adj.
Depth24" (double depth)

Choose Your Option — RTA or Factory Assembled

Option What's Included MSRP Our Price
RTA
WS-W243624-RTA 		Flat-packed, ready to assemble $586.80 $334.77 Best Value
Factory Assembled
WS-W243624-(A) 		Pre-built cabinet, ready to hang $704.16 $372.38
Ships from our Ohio & Florida warehouses. As a double-depth cabinet it is bulkier than a standard wall cabinet, so freight can be higher — RTA ships flat-packed to reduce cost and damage risk. Contact us — we can often arrange lower rates, especially for multi-cabinet orders or warehouse pickups.

Watch a step-by-step walkthrough of assembling your RTA wall cabinet. Most wall cabinets assemble in 15–30 minutes with standard tools.

Note: This is our standard wall cabinet assembly video. The only difference for the W243624 is that it's 24" deep (double depth) instead of the standard 12" — it's assembled the same way.

Written Assembly Steps

Prefer to read along? Here’s the short version. The panels slide together on dovetail grooves and lock square with metal corner braces. Most wall cabinets go together in about 15–30 minutes with a screwdriver or drill and a rubber mallet.

Note for this 24"-deep cabinet: the W243624 is built exactly the same way as our standard 12"-deep double door wall cabinets. The side, top, bottom panels and shelves are simply deeper, so the illustrations may look shallower than the parts in your box.

  1. Lay the front face on a soft surface with the grooves facing up — these grooves receive the side panels and the top and bottom panels.
  2. Slide the side panels into the grooves on the front face until the clips line up and fully engage. Repeat for the top and bottom panels.
  3. Slide the back panel into the grooves on the side panels until flush.
  4. Fit a metal corner brace into each of the 4 top corners and screw the braces to the panels to lock everything square.
  5. Push the shelf clips into the pre-drilled holes on the side panels at your preferred height and slide in the two shelves, finished front edge facing out.

Optional — wood glue for a sturdier finish: A small amount of wood glue in the dovetail joints gives a stronger, more permanent bond. It’s completely optional — many of our regular clients have their own preferred way of building these, and there’s no right or wrong method. Build it the way that works best for you.

Measurement Value
Exterior Width 24"
Exterior Height 36"
Exterior Depth 24" (double depth — vs standard 12")
Doors Two full-overlay shaker doors
Adjustable Shelves 2× ¾"
Glass Door Option Yes — PG2436 (plain) or MD2436 (mullion)
Door Overlay Full

All measurements are nominal. Allow ±⅛" tolerance. A 24"-deep cabinet projects further from the wall than a standard wall cabinet — confirm clearances (especially over a refrigerator) before ordering.

  • Box: ½" solid plywood — no particle board. Holds screws significantly better and won't swell or delaminate. Important for the secure wall-mounting of a deep, loaded cabinet.
  • Depth: 24" — a double-depth wall cabinet, twice the depth of a standard 12" wall cabinet.
  • Doors: Two full-overlay shaker doors (HDF construction with solid wood shaker profile).
  • Hinge: European-style soft-close concealed hinges, 6-way adjustable.
  • Shelves: Two full-depth adjustable shelves — full-depth, repositionable.
  • Optional glass doors: PG2436 plain glass or MD2436 mullion glass, ordered separately.
  • Interior: Color-matched box and shelves. Door bumpers included.

RTA (Ready to Assemble) is the best value and ships flat-packed, reducing freight cost and damage risk — especially worthwhile on a bulky double-depth cabinet. Assembly takes 15–30 minutes with standard tools. RTA orders are processed in up to 14 business days — though most are ready within 3–8 business days.

Factory Assembled units arrive pre-built and ready to hang. Assembled cabinets are bulkier to ship, so freight can be higher. Factory assembled orders are processed in up to 21 business days — typically 10–15 business days on average. Contact us — we can often reduce freight costs, especially on larger orders.

  • RTA orders are typically processed within 3–8 business days (up to 14 business days).
  • Factory assembled orders are typically processed in 10–15 business days (up to 21 business days).
  • RTA cabinets ship in flat-pack cartons — significantly lower freight risk than assembled units.
  • Shipping transit time after processing varies depending on distance from our warehouse locations in Ohio and Florida.
  • Warehouse collection is always free. Collections are by appointment only, Monday–Friday, 8:00 AM–3:30 PM, excluding public holidays. Contact us to book a pickup time.
  • Double-depth cabinets are bulkier and may incur higher shipping costs. Contact us — we can often reduce freight costs on larger orders.
  • Inspect your delivery for damage before signing. Note any damage on the delivery receipt and contact us immediately.
Contractor, flipper, or designer? We offer trade pricing, volume discounts, and dedicated support for professionals. Contact us to set up a trade account →

Wall cabinets are usually finished with molding at the top and bottom, plus fillers to close gaps. Most orders for this cabinet include:

  • LCM8 Crown Molding — caps the top of the wall cabinets against the ceiling or as a decorative top edge. Sold in 8′ lengths.
  • LVC Large Cove Crown Molding — a larger cove-profile crown for a more substantial top treatment, especially on 42" cabinets that run to the ceiling. Sold in 8′ lengths.
  • LRM8 Light Rail Molding — mounts under the wall cabinets to finish the bottom edge and conceal under-cabinet lighting. Sold in 8′ lengths.
  • WF342 (3") or WF642 (6") Wall Fillers — close gaps between wall cabinets, or between a cabinet and the wall. Both can be trimmed on installation.
  • TUK Touch-Up Kit — recommended with every cabinet order. Covers any nicks or scratches picked up during assembly or installation, and normal wear-and-tear over the cabinet’s lifetime.
  • PG2436 Plain Glass Double Doors — swap the solid shaker doors for plain-glass doors for a display look on this cabinet.
  • MD2436 Mullion Glass Double Doors — swap the solid shaker doors for mullion (divided-light) glass doors for a decorative display look on this cabinet.
