VSDB60 - 60" Wide Double Sink Vanity Base Cabinet - White Shaker
VSDB60 - 60" Wide Double Sink Vanity Base Cabinet - White Shaker
Couldn't load pickup availability

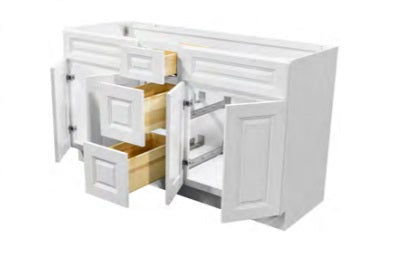

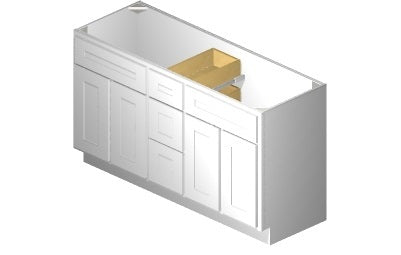

The VSDB60 is a 60"-wide double sink vanity base cabinet — 21" deep and 34.5" tall — with a pair of butt doors under each sink and a center bank of three working soft-close dovetail drawers. Solid plywood box, dovetail drawer boxes, soft-close everything. No particle board. Available ready-to-assemble (RTA) or factory pre-built.
At $604.51 RTA vs. the $1059.62 MSRP — about 43% off — it's trade-quality construction at a price that keeps your bathroom remodel on budget.

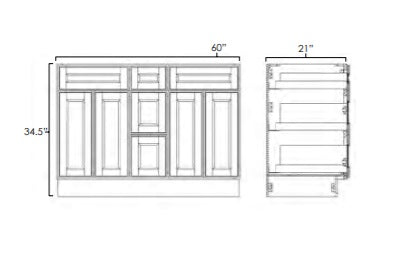

VSDB60 Dimensions
Construction Specs — White Shaker VSDB60
Choose Your Option — RTA or Factory Assembled
| Option | What's Included | MSRP | Our Price | |
|---|---|---|---|---|
|
RTA WS-VSDB60-RTA |
Flat-packed, ready to assemble | $1059.62 | $604.51 | Best Value |
|
Factory Assembled WS-VSDB60-(A) |
Pre-built cabinet, ready to install | $1271.54 | $672.43 |
Factory assembled units may incur higher freight costs. Contact us — we can often arrange lower rates, especially for multi-cabinet orders or warehouse pickups.
The video below is our standard base cabinet assembly video. The VSDB60 goes together on the same principles, so use it as your guide, then follow the written steps underneath for the parts that are different on this double sink vanity.
Written Assembly Steps

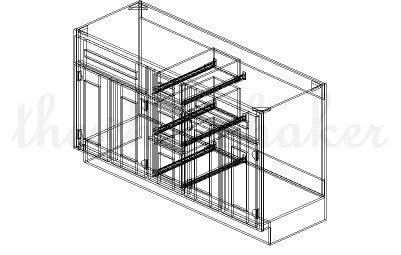

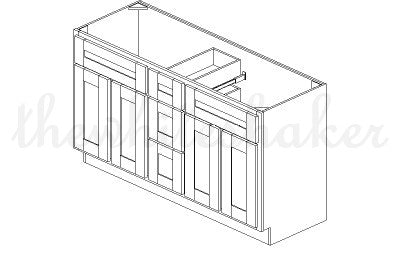

What's different from the video: the VSDB60 box uses two bottom panels, the face frame carries four doors (a pair under each sink) around a center drawer bank, and there are three drawers to build. There are no shelves. The full Faircrest diagram is in the product images above.
Build the cabinet box
- Lay the front face on a soft surface with the grooves facing up — these grooves receive the bottom panels.
- Slide the side panels into the grooves on the front face until the clips line up and fully engage.
- Slide the two bottom panels into the grooves on the side panels.
- Slide the back panel into the grooves on the bottom and side panels until flush, with the clips fully engaged.
- Stand the cabinet upright, fit a metal corner brace into each of the 4 top corners and screw the braces to the panels to lock everything square.
- Clip the front and back toe-kick plates to the side panels until the clips fully engage.
Build & fit the three drawers (repeat for each)
- Lay a drawer front grooves-up and slide the drawer side panels into its dovetail grooves until flush (tap with a mallet if needed).
- Slide the drawer bottom in with the finished side up, then attach the drawer back panel — dovetails fully engaged.
- Screw the drawer-member slides to the drawer sides through the pre-drilled holes.
- Fit the cabinet-member slides: push the barbed dowels into the back panel’s pre-drilled holes, screw the sockets to the back panel, then screw the front of each slide to the cabinet through the pre-drilled holes.
- Slide each drawer onto its guides through the front of the cabinet — the standard drawer at the top and the two deep drawers below.
Optional — wood glue for a sturdier finish: A small amount of wood glue in the dovetail joints gives a stronger, more permanent bond. It’s completely optional — many of our regular clients have their own preferred way of building these, and there’s no right or wrong method. Build it the way that works best for you.
| Measurement | Value |
|---|---|
| Exterior Width | 60" |
| Exterior Depth | 21" (vanity depth) |
| Exterior Height | 34.5" |

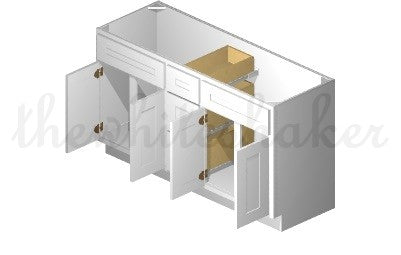

| Doors | Four butt doors — a pair under each sink |
| Working Drawers | Three in the center — 1 standard over 2 deep |
| Shelves | None (open sink compartments) |
| Drawer Box | ¾" solid wood, dovetail |
| Flat-packed Dimensions | 6.5" × 36.5" × 26" |
| Shipping Weight (RTA) | 122 lbs |
| Door Overlay | Full |
All measurements are nominal. Allow ±1/8" tolerance. Both door sections are left open for the sink bowls and plumbing — confirm sink and faucet spacing with your countertop before ordering.
- Box: ½" solid plywood — no particle board. Resists swelling and holds screws well — important in a bathroom environment.
- Face Frame: Solid wood, not MDF.
- Doors: Four full-overlay shaker doors (HDF construction with a solid wood shaker profile) in butt-door pairs, one pair under each sink.
- Drawers: Three working drawers in the center bank — one standard drawer over two deep drawers.
- Drawer Box: ¾" solid wood with dovetail joinery on undermount soft-close glides.
- Hinge: European-style soft-close concealed hinges, 6-way adjustable.
- Interior: Color-matched box, natural drawer interiors. No shelves. Door and drawer bumpers included.
RTA (Ready to Assemble) is the best value and ships flat-packed, reducing freight cost and damage risk. Allow 45–75 minutes with standard tools. RTA orders are processed in up to 14 business days — though most are ready within 3–8 business days.
Factory Assembled units arrive pre-built and ready to install. Assembled cabinets are bulkier to ship, so freight can be higher. Factory assembled orders are processed in up to 21 business days — typically 10–15 business days on average. Contact us — we can often reduce freight costs, especially on larger orders.
How many drawers and doors does the VSDB60 have?
Four doors — a pair of butt doors under each sink — and three working drawers in the center: one standard drawer over two deep drawers. The drawer boxes are three-quarter-inch solid wood with dovetail joinery on undermount soft-close glides.
Does the VSDB60 have shelves?
No. Both door sections are left open for the sink bowls and plumbing, so there are no shelves in this cabinet.
How deep is the VSDB60?
The VSDB60 is 21 inches deep — the standard depth for a bathroom vanity, shallower than a 24-inch kitchen base cabinet.
How do I assemble the VSDB60?
Follow the standard base cabinet video on the product page for the general method, and the written VSDB60 steps for the differences: the box uses two bottom panels, and the three center drawers each build up from dovetailed panels and drop onto soft-close slides. Most double vanities take 45–75 minutes with a drill, a rubber mallet and clamps.
Is the VSDB60 solid wood or particle board?
The VSDB60 box is half-inch solid plywood and the face frame is solid maple/birch — no particle board. The drawer boxes are three-quarter-inch solid wood with dovetail joinery; the doors are HDF with a solid wood shaker profile.
What is the return policy?
Returns are accepted within 30 days of delivery on unassembled cabinets in original packaging. Unwanted returns are subject to return shipping and a 25% restocking fee. Damaged or defective items are handled on a priority basis.
- RTA orders are typically processed within 3–8 business days (up to 14 business days).
- Factory assembled orders are typically processed in 10–15 business days (up to 21 business days).
- RTA cabinets ship in flat-pack cartons — significantly lower freight risk than assembled units.
- Shipping transit time after processing varies depending on distance from our warehouse locations in Ohio and Florida.
- Warehouse collection is always free. Collections are by appointment only, Monday–Friday, 8:00 AM–3:30 PM, excluding public holidays. Contact us to book a pickup time.
- Inspect your delivery for damage before signing. Note any damage on the delivery receipt and contact us immediately.
Vanity cabinets are usually completed with a few finishing pieces. Most orders for this cabinet include:
- TK8 Toe Kick — sold in 8′ strips. Installed over the structural toe kicks to cover seams and make the toe kick area one continuous surface across the vanity run.
- BF3 (3") or BF6 (6") Base Fillers — close gaps between cabinets, or between cabinets and walls. Both can be trimmed in height and/or width on installation.
- TUK Touch-Up Kit — recommended with every cabinet order. Covers any nicks or scratches picked up during assembly or installation, and normal wear-and-tear over the cabinet's lifetime.
Installing on an island or open run? If the back of this cabinet will be exposed, finish it with:
- SPW Skin Panel — a 36" × 96" panel that covers exposed cabinet backs. It can be trimmed on installation, depending on the needs of the remodel.
- OCS8 Outside Corner Molding — covers the raw corner where the back panel meets the cabinet box for a clean, finished end.
End of a run with an exposed side?
- MVEPBH Matching Vanity End Panel — a decorative panel for exposed vanity sides at the end of a run. Dresses the exposed side to match the cabinet faces for an elevated, premium finish.
